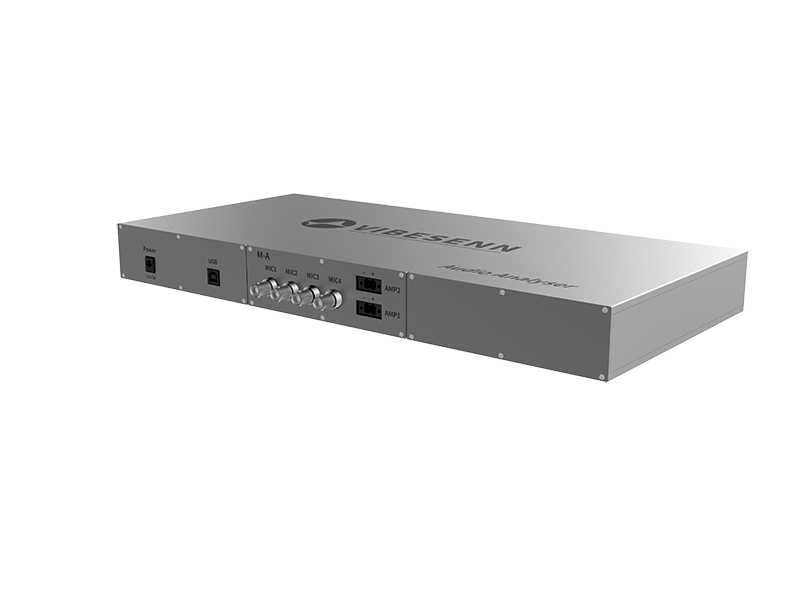

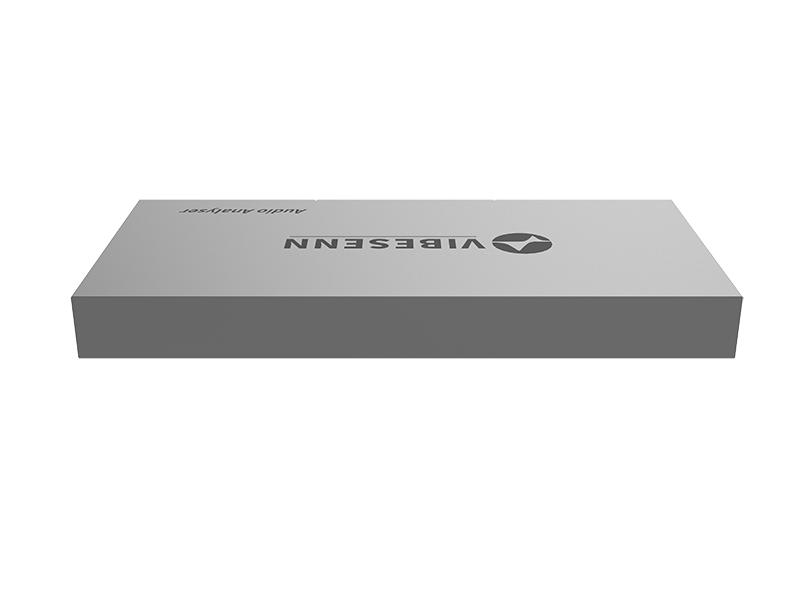

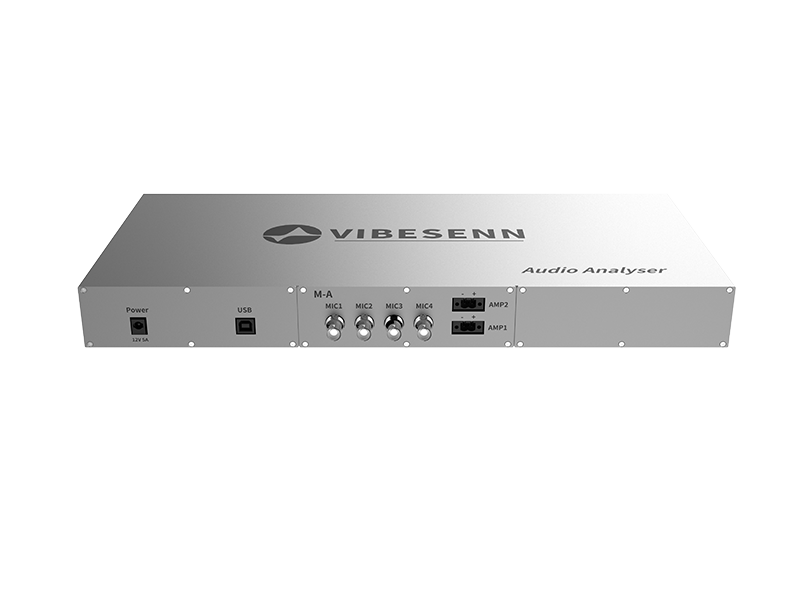

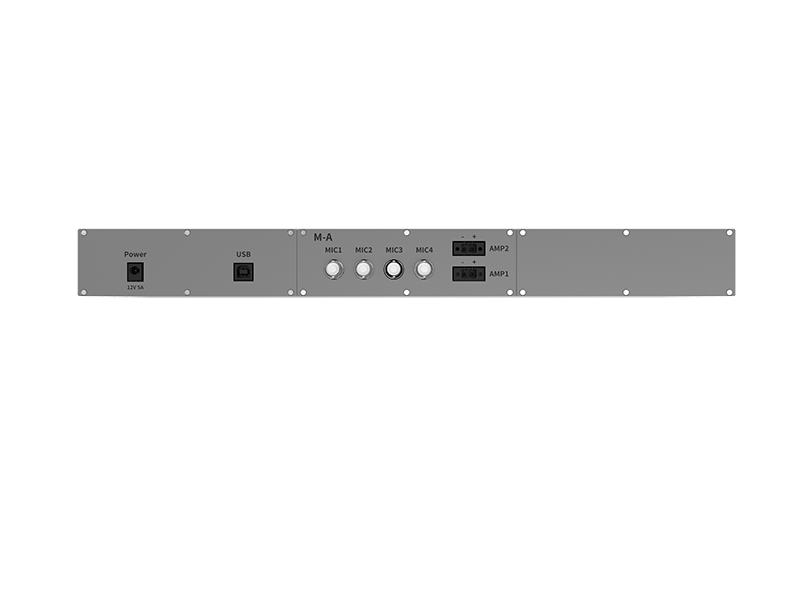

With high precision and high integration of professional acoustic test equipment, input integrated IEPE function, output class D power amplifier, can serve a variety of electroacoustic, noise and vibration test field, and according to the specific test needs, Audio Analyser can provide different modules to choose. Compared with similar products, its test speed, performance, automation are more excellent
4ch input integrated ICP/IEPE, you can set the gain, IEPE and other functions through the control softwar
2ch Class 10W/D power amplifier with output protection
OSENS is driven by technological innovation and constantly pursues better quality
Excellent Performance Excellent response speed | Excellent Precision Rigorously designed and tested | High Test Speed Improve test efficiency and quality | Function Integration More comprehensive functions |
Input
Input channel: | 4-channel |
Interface: | BNC |
Frequency response: (20Hz~20kHz) | ± 0.025dB |
THD: (1V/1kHz) | 0.0006% |
Input background noise: | -130dBV |
Input signal to noise ratio: (1V/1kHz) | 106dB |
Maximum input voltage: | 3Vp |
Crosstalk: (1V/1kHz) | -116dB |
Gain: | x1, x10, x100 |
Output
Output channel: | 2-channel |
Power supply voltage: | 12V-16V |
Output power: | 10W |
Output interface: | Pluggable wiring port |
Frequency response: (20Hz~20kHz) | ± 0.2dB |
Output THD: (1V/1kHz) | 0.07% |
Output background noise: | -100dBV |
Maximum output voltage: | 16Vpp |
Crosstalk: (1V/1kHz) | -100dB |
Universal parameter
Support driver: | ASIO/WDM/Core Audio |
Sample rate: | 48kHz / 96kHz / 192kHz |
Size: | 191*110*45mm |
Weight: | 4.2kg |
