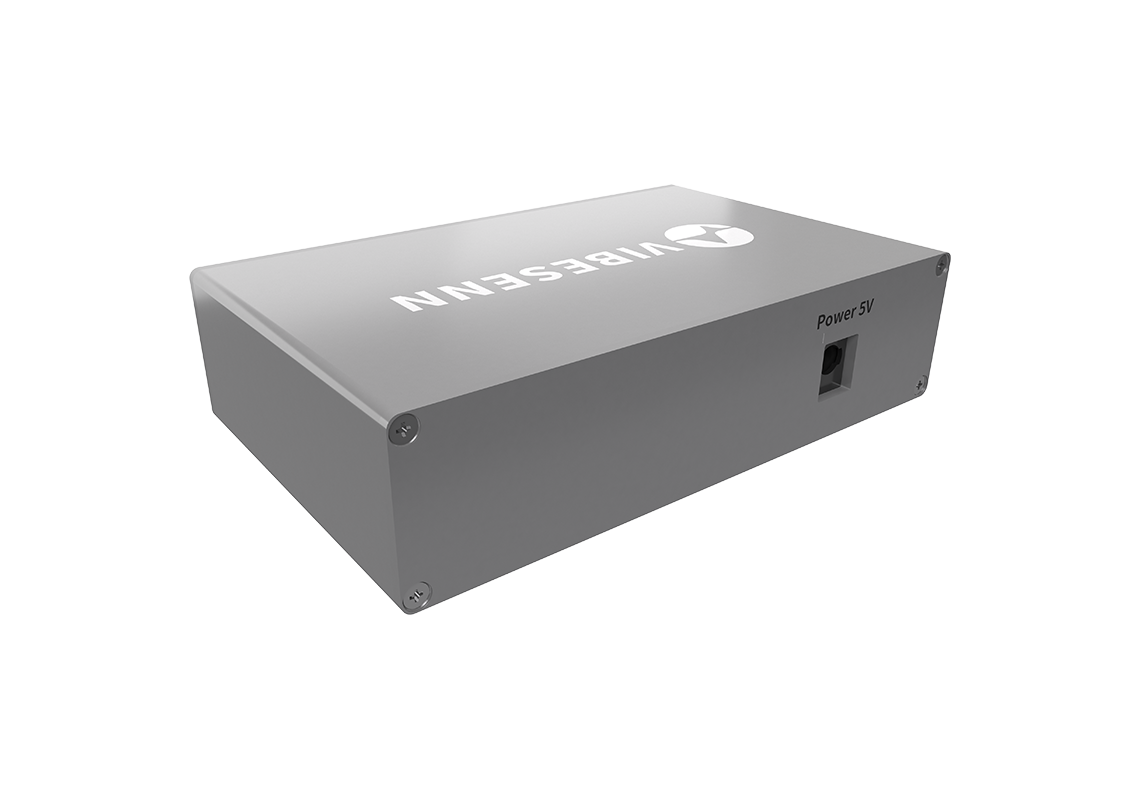

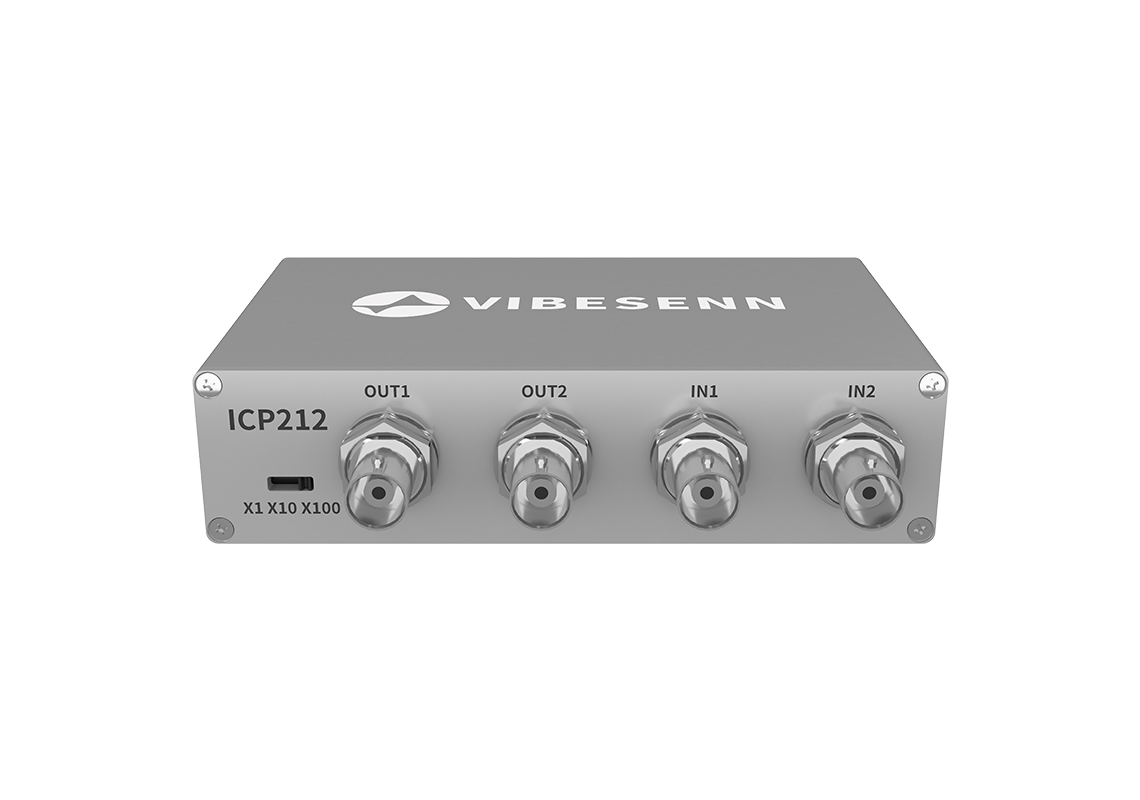

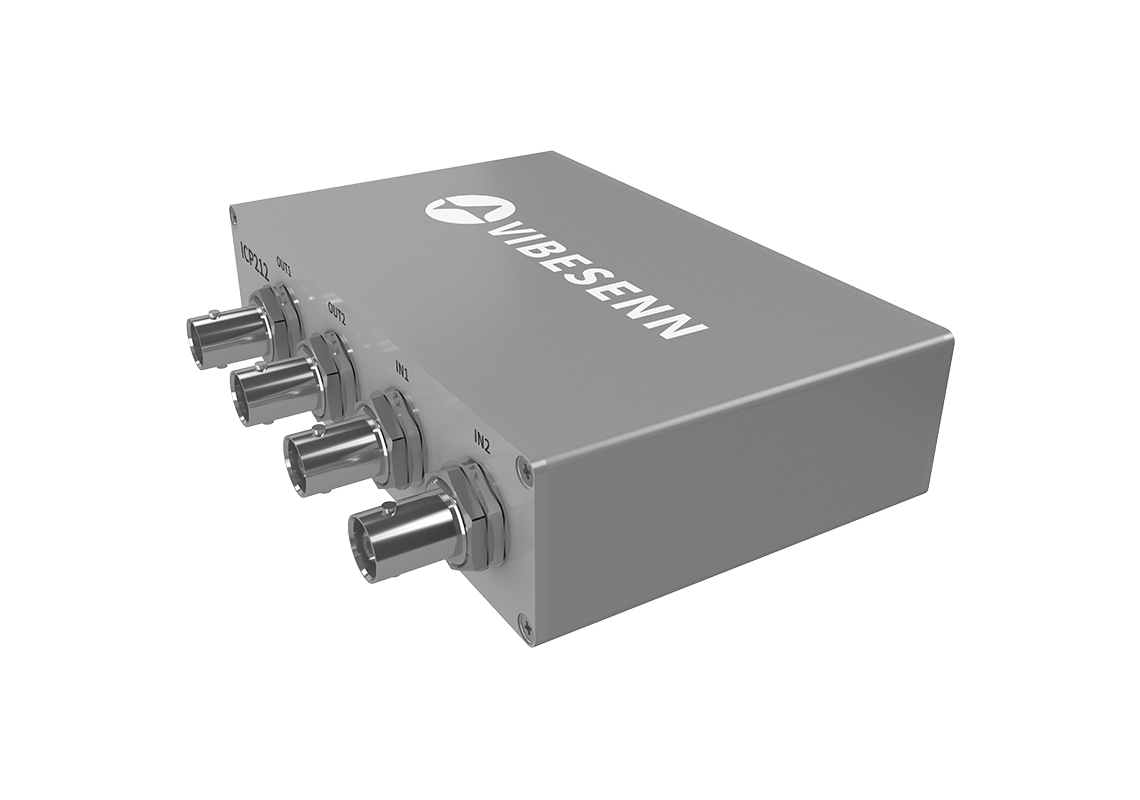

Signal Conditioner -ICP212
The signal conditioner is the IEPE circuit, which can support multi-channel microphone power supply, the signal gain can be adjusted to 1 times, 10 times and 100 times, with extremely low floor noise and total harmonic distortion.
Product Features
OSENS is driven by technological innovation and constantly pursues better quality
Widely Applicable Comprehensive functional portfolio |
Small Size Lighter weight and more practical |
Strong Anti-jamming Rigorously designed and tested |
Reliable Performance Ensure safety and reliability |
Technical Parameters
| Number of channels: | 2-channel |
Frequency response: (20Hz~20kHz) | ± 0.02dB |
THD: (1V/1kHz) | 0.0001% |
Background noise: | -140dBV |
Signal to noise ratio: (1V/1kHz) | 118dB |
Maximum input voltage: | ±10V |
Maximum output voltage: | ±10V |
Gain: | x1, x10, x100 |
Size: | 120*95*30mm |
Weight: | 300g |
